This weaving mill is producing lighter weight fabrics for cotton shirts.

Export mostly to EU countries.

Karl Mayer GOM 24 sample warper

Year of construction : 2012

working width 2250 mm

Rotational creel with 24 weft feeders

Automatic leasing device for initial and final even and odd separations and for the 5 leasings  for sizing.

Pc on board with touch screen

Karl Mayer GOM 16 sample warper

Year of construction : 2005

working width 2250 mm

Rotational creel with 16 weft feeders

Automatic leasing device for initial and final even and odd separations and for the 5 leasings  for sizing.

Pc on board with touch screen

Benninger Ergotec sectional warper

Year of construction: 2006

working width 2250 mm

with Benninger creel for 440 bobbins

Benninger Ergotec sectional warper

Year of construction: 2006

working width 2250 mm

with Benninger creel for 440 bobbins

Yamada warp sizing machine

Typ : YS-6

Year of construction : 2001

12 winding heads

Single-End Sizing Winder, 12spindles
Winding Speed : 50 - 400 m/min.
Individual Speed Control by each inverter
Slow-start and Slow-down function by each Inverter
Squeezing Device (with speed changing pulley)
Heater Source : Electric

With device for sizing liquid

Benninger BEN-SIZETEC Sizing machine

Year of construction : 2006

Working width : 220cm

double-walled sizing trough,

4 drum Dryer with a diameter of 800 mm,

beaming speed 0.4 bis 125 m/min

Single size box with 2 Immersion rollers

2 Lower rollers and 2 Squeeze rollers

with kitchen for sizing liquid

29 Picanol Gammax – 8- R rapier weaving machine

Year 2006

working width : 190cm

with dobby Staubli 2861 ( max capacity 24)

with QSC ( Quick Style Change)

with batching motion

8 weft feeder Picanol Luna X2

10 heald frames

1,5 warp beam

6 Picanol Gammax – 8- R rapier weaving machine

Year 2006

working width : 190cm

with dobby Staubli 2861 ( max capacity 24)

with QSC ( Quick Style Change)

with batching motion

8 weft feeder Picanol Luna X2

10 heald frames

1 upper warp beam, diam. 800mm

1,5 warp beam

3 Picanol Gammax – 8 – R rapier weaving machine

Year 2006

working width : 190cm

with dobby Staubli 2861 ( max capacity 24)

with 2 x SELVEDGE JACQUARD MACHINE (JACQUARETTE)
Stäubli CX 180 196 A

with QSC ( Quick Style Change)

with batching motion

8 weft feeder Picanol Luna X2

10 heald frames

1,5 warp beam

8 Picanol Gammax – 8- R rapier weaving machine

Year 2003

working width : 210 cm

with dobby Staubli 2861 ( max capacity 24)

with QSC ( Quick Style Change)

with batching motion

8 weft feeder Picanol Luna X2

16 heald frames

1,5 warp beam

3 Picanol Gammax – 8- R rapier weaving machine

Year 2003

working width : 210 cm

with dobby Staubli 2861 ( max capacity 24)

with QSC ( Quick Style Change)

with batching motion

8 weft feeder Picanol Luna X2

16 heald frames

1,5 warp beam

1 upper warp beam, diam. 800mm

6 Dornier HTVS8/S rapier weaving machine

Year 1997

working width : 190cm

with jacquard Staubli

with 7 weft feeders Picanol  Luna

panel A2

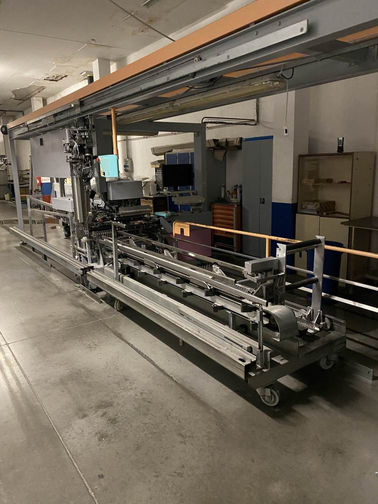

STAUBLI – DELTA 200 drawing-in machine,

Year of construction : 2006

working width 220 cm;

with computer and keyboard

max. load of 24 frames;

with 2 preparatory trolleys for warp beams and 2 preparatory

trolleys for heald frames;

STAUBLI – DELTA 200 drawing-in machine,

Year of construction : 2005

working width 220 cm;

with computer and keyboard

max. load of 24 frames;

with 2 preparatory trolleys for warp beams and 2 preparatory

trolleys for heald frames;
