COMPLETE RIETER RING SPINNING PLANT 25,392 SPINDLES

C10 9090

Complete RIETER Ring Spinning Plant, 25,392 spindles

currently spinning cotton in 30 – 50 Ne counts

originally 14,352 spindles plant (1998) ; extended to 25,392 spindles plant (2001)


BLOWROOM
Rieter A10 Bale Opener (1998)

Rieter B11 Uniclean (1998)

Rieter B60 Uniflex fine cleaner 500kg/hr(1998)

Rieter B60 Uniflex fine cleaner 500kg/hr (2001)

Rieter B7/3 Unimix ; multimixer(1998)

Rieter B70 Unimix multimixer  2001

Max 800 kg/h each

Jossi foreign fibre detector


17 RIETER  C51 CARDS

Suitable for cotton and blends, Maximum production 80 kg/h, feed weight  400 - 1000 g/m

automatic material feding with A70 Aerofeed-U-chutes

Automatic regulation, sliver count Cv and sliver spectogram. Automatic waste removal system.

Automatic can change

3 pcs licker in side, 3 pcs doffer side stationary flats

Cans with castors  600 x 1200 mm

8 x 1998 ; 9 x 2001 with IGS


5 RIETER SB-D 10 DRAW FRAMES

Automatic can changer

Creel for 8 folds

Infeed cans  600 mm x 1200 mm

Outlet cans with castors 600 mm x 1200 mm

Working speed   250-1000 m/min

3 x 1998; 2 x 2001


5 RIETER  RSB-D30 DRAW FRAMES

Automatic can changer

Creel for 8 folds

Infeed cans600 mm x 1200 mm

Outlet cans with castors 500 mm x 1200 mm

Rieter quality monitor

Working speed   250-1000 m/min

3 x 1998; 2 x 2001


RIETER COMBING LINEs 2+12

1 RIETER UNILAP E30 1998

1 RIETER UNILAP E32 2001

Creel for 24 - 28 folds

Infeed cans  600 mmx 1200 mm

Automatic lap doffing

Lap trolleys

Programmable speed control VARIOspeed

Production speed maximum 120 m/min

Lap diameter 600 mm

Lap width 300 mm

Creel for 24 - 28 folds

Infeed cans  600 mmx 1200 mm

Automatic lap doffing

Lap trolleys

Programmable speed control VARIOspeed

Production speed maximum 120 m/min

Lap diameter 600 mm

Lap width 300 mm

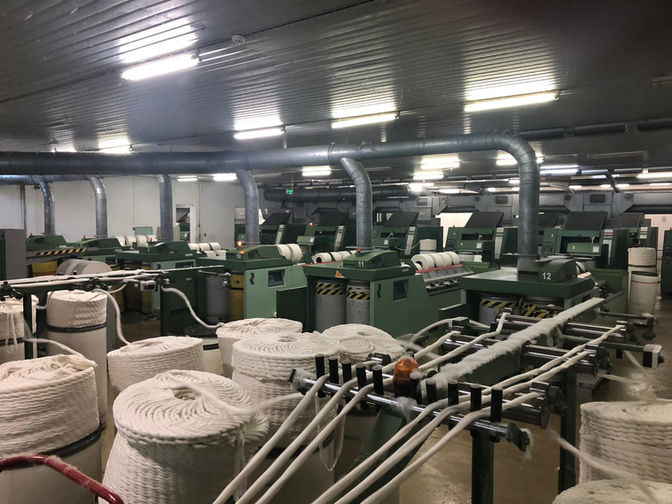

6 RIETER COMBERS E 60H  1998

6 RIETER COMBERS E 62  2001

Production up to 400 nips/min

Lap feding system from the trolleys

Automatic can changer with 2 reserve cans

Central noil suction system

Feeding lap sup to 600 mm diameter

Lap spools  dia 200 mm, length 300 mm


4 RIETER FLYERS F10 1998

3 RIETER FLYERS F11 2001

120 spindles

Drafting system with 3 over 3 cylinders
Pendulum arm PK 5000,  fibre lengths up to 40 mm

Bottom cylinders dia  32 mm / 32 mm / 32 mm

Top cylinders dia    35 mm / 25 mm / 35 mm

Bottom apron   44  x  265  x  0,9

Top apron    37    x  39   x  1,0

Gauge   260 mm

Flyer speed maximum 1400 rpm

Full bobbin diameter maximum 152 mm (6 inches)


13 RIETER G33 RING SPINNING FRAMES, 1998

10 RIETER G33 RING SPINNING FRAMES , 2001

1104  Spindles each,

Ring dia 42 mm , TİTAN ORBİT type rings,

70 mm gauge, Tube length 210 mm

ROBOdoff ve ROBOload

Full inverter drive

Full Automatic spinning

Maximum  20.000 rpm spindle speed


3 MURATA 7V-II AUTOMATIC CONE WINDERS  2001

3 MURATA 7Vss AUTOMATIC CONE WINDERS  1998

Number of drums  60

Automatic Cone Winder (BOBBIN TRAY)

Individual knotter type MACH-SPLICER

Single sided and Deck type

To wind from ring cops onto 6" traverse plastic or paper cones.

maximum 1500 m/min,

Equipped with electronic ribbon breaker

Package sizer and drum slow start device

Motor driven disc tensor and empty bobbin

Continuous bobbin feeding systems

Electronic yarn clearer: Type: Loepfe TK 830

Bal-Cone

MMC.III/Yarn length counter

Package break with cradle lifter

Autodoffing

Full package conveyor
