INTEGRATED DENIM CLOTH FINISHING LINE

Working Width 1.800mm

Year of machines are nearly all original 2004. However, they were all completely reconditioned (funded by the EU) when moved to it’s present location in 2017.

The singe machine had new burners and gas train 2017. Inverter drives throughout; bearings changed in 2017, excellently maintained.

Working only 1 shift, 5 days per week.

Consisting of:

Brushing & Singeing Unit

FITE Double Sided Brushing machine to extract lint and dust.

High entrance frame,

1 pr Erhardt & Leimer fabric edge guiders

FITE Singeing machine with 2 gas burners

Air quench and extinguishing unit

TEPA Draw nip,

TEPA 1st Washing Unit

3 upper/4 Lower rollers, steam heated ,

Squeezer 7 ton pressure

TEPA Multi roller dwell zone (for mercerisation)

TEPA 2nd Washing Unit

8 upper/9 Lower rollers,

Squeezer 10 ton pressure

TVE Suction slot extractors unit

enclosed in stainless steel tank,

complete with suction pump

TEPA 3rd Washing Unit

3 upper, 4 Lower rollers,

Squeezer 7 ton pressure

3 roller padding mangle

MAHLO Weft Straightener

Type RFMC 104E/2000

for adjusting skew

DRYING CYLINDERS RANGE

2x 8 Cylinder Dryer Tower,

Cylinder Diameter 600 mm,

with MAHLO Humidity Controller

overhead fabric guide rollers;

MONFORTS & TEPA SANFORISER

Can be used separately from preceeding line

TEPA high entrance frame

with draw roller

Dancing roller

with I pair Erhardt & Leimer fabric edge guiders

Perforated steaming cylinder

MONFORTS Rubber belt  shrinking machine,

cylinder diameter 640 mm

Rubber belt width 1850mm

Rubber belt rectification cylinder

TEPA Palmer Calender with blanket

Cylinder 200cm diameter

2 steam heated blanket drying cylinders

2 Water cooled cylinders

Surface driven A-frame batcher

Tanks for desizing enzymes and caustic soda

Canopies and extraction ductwork

Spare new Palmer Calender blanket

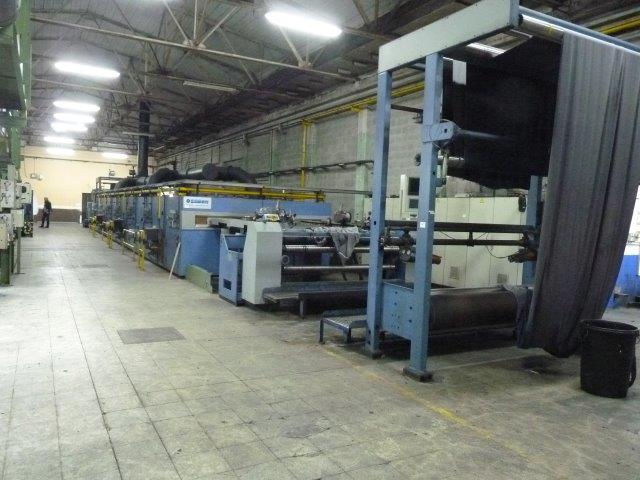

BRUCKNER STENTER FRAME (Saben)

Manufactured 2004 , reconditioned 2017 when moved to present location

This machine has had relatively little work , used on 1 shift , 5 days per week

Used for heat setting of stretch denim fabrics

Max fabric width 200cm

Horizontal return pin chain

High entrance frame

With fabric tensioning rollers,

Dancing roller

Driven Draw roller

1 pair Erhardt & Leimer fabric edge guiders

Entrance desk with scrolled roller and overfeed

6 Chambers heated by gas fired burners

Cooling zone

Exit with surface driven A-frame batcher

Click hereto view photos & video on our website.

DENIM WEAVING MACHINERY

We currently have available several batches of PICANOL OPTIMAX LOOMS width 190cm and 220cm (for stretch fabrics).
